1" PEX-A EXPANSION RING, ASTM F1960 PPSU Expansion Fitting
In stock
- SKU
- F1-1PER-161
$0.45
- Buy 50 for $0.41 each and save 9%
Only 2303 left
Description / 1" PEX-A EXPANSION RING, ASTM F1960 PPSU Expansion Fitting
Size: 1”
PEX-B Expansion Ring, Cold Expansion connection
Feature
• Material: PEX-B
• Color：White
• Conform to ASTM F1960, CSA B137.5 Standard
• Certification: cUPC, NSF/ANSI 61
• Size range: 3/8”-2”
• Installed using expansion method
• For plumbing, heating & HVAC applications.
To install 247Garden's 1 inch PEX-A Expansion Ring, follow these steps:
- Place the expansion ring onto the PEX-A tubing, ensuring it extends beyond the tubing end by no more than 1/8 inch.
- Utilize a manual or cordless expansion tool designed for PEX-A tubing. Insert the tool into the tubing and expand it.
- Remember, use the appropriate expander head for your PEX-A tubing size. For instance, for 1 inch PEX-A tubing, employ a 1 inch expander head.
- Rotate the expander head after each expansion to prevent internal ridges on the tubing.
- Once expanded, insert the fitting until it reaches the shoulder, allowing the PEX to naturally contract around the fitting.
- After a few seconds, the tubing will securely wrap around the fitting, ensuring a tight connection.
- Your installation is complete and ready for use.
More Information
| SKU | F1-1PER-161 |
|---|---|
| Shipping Weight (Lb) | 0.030000 |
| Case Qty | 500 |
| Country of Manufacture | China |
| Condition | New |
| Brand | 247Garden |
| PEX Connection Type | F1960 Cold Expansion Fitting |
| PEX Size | 1" PEX |
| PEX Material | PPSU (Polyphenylsulfone) Lead Free |
| PEX Certifificates/Standard | UPC, IPC, cUPC, NSF, ANSI 61, ASTM |
| PEX Temperature Rating | 32℉ - 200℉ |
| PEX Pressure Rating | 200 psi |
| PEX Applications | Drinking Water, Mobile Home, Camper Van, Heating, Cooling, Residential Plumbing , Commercial Plumbing, Hydroponics, Radiant Floor Heating, Hydronic Heating, Snow and Ice Melting Systems, Fire Sprinkler Systems, Water Distribution in Commercial Buildings, Potable Water Systems, Water Store, Chilled Water Systems, Agricultural and Irrigation Systems, Aquarium and Fish Tank Plumbing, Boat and RV Plumbing, Industrial Applications, Geothermal Heating and Cooling Systems, Solar Water Heating Systems |
| Prop 65 Warning | California Proposition 65 Cancer Warning - www.p65warnings.ca.gov |

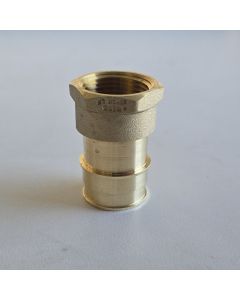

1" PEX-B Barb Lead Free Brass F1960 Cold Expansion Fittings
